AFK Adjustable Oxygen Nitrogen Argon Regulator 6000 Psi High Pressure 1/4NPT Female Body Thread Chinese Manufacture

FOB Reference Price:Get Latest Price
$180.00 - $182.00 / Set | 1 Set/Sets (Min. Order)
Material:
SS 316
Lead Time:
Quantity(Sets) 1 - 200 >200
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
AFK
Model Number:
R41
Body material:
brass, nickel plated brass, stainless steel 316L
Structure:
Diaphragm
Applicable media:
gas: oxygen, nitrogen, hydrogen, helium, CO2 etc..
Maximum inlet pressure:
6000psi, 3000psi. Other pressure gauge ranges can be set.
Outlet pressure range:
0~250, 0~500psi, 0~1500psi, 0~3000psi
Inlet connection:
1/4"NPTF, 1/4"NPTM, 1/4"ferrule, G5/8, CGA320, CGA540, CGA580
Outlet connection:
1/4"NPTF, 1/4"NPTM, 1/4"ferrule,6mm ferrule,8mm ferrule, barb
Temperature:
-10~+74°C (-40~+165°F)
Cv:
0.06
Optional:
Panel mounting, relief valve, needle valve
Supply Ability
Supply Ability:
2000 Set/Sets per Week
Packaging & Delivery
Packaging Details
In carton. It is upon your request.
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 200 >200
Est. Time(days) 15 To be negotiated

AFK Adjustable Oxygen Nitrogen Argon Regulator 6000 Psi High Pressure 1/4NPT Female Body Thread Chinese Manufacture

Product Application

R41 Series stainless steel pressure reducers, piston pressure-reducing construction, stable output pressure,

mainly applied in high input pressure high pure gas, standard gas, corrosive gas and so on.

Ordering Sheet

Item NO.

Body

Ports

Inlet pressure

outlet pressure

gauge

inlet connection

Outlet connection

Options

R41

L:316L

A

D:6000psi

D:0-3000psi

G:Mpa

00:1/4"NPT F

00:1/4"NPT F

P:Panel



B:brass

B

B:3000psi

E:0-1500psi

P:psi/bar

01:1/4NPT M

01:1/4NPT M







D



F:0-500psi

W:none

10:1/8O.D.

10:1/8O.D.







G



G:0-250psi



11:1/4O.D.

11:1/4O.D.







J







12:3/8O.D.

12:3/8O.D.







M







15:6mm O.D.

15:6mm O.D.















16:8mm O.D.

16:8mm O.D.



Other fittings are available, pls specify

Design Feature:

Piston type pressure relief structure.

Body NPT:1/4''NPT(F)

Can set filters

Can use a panel or wall mounting

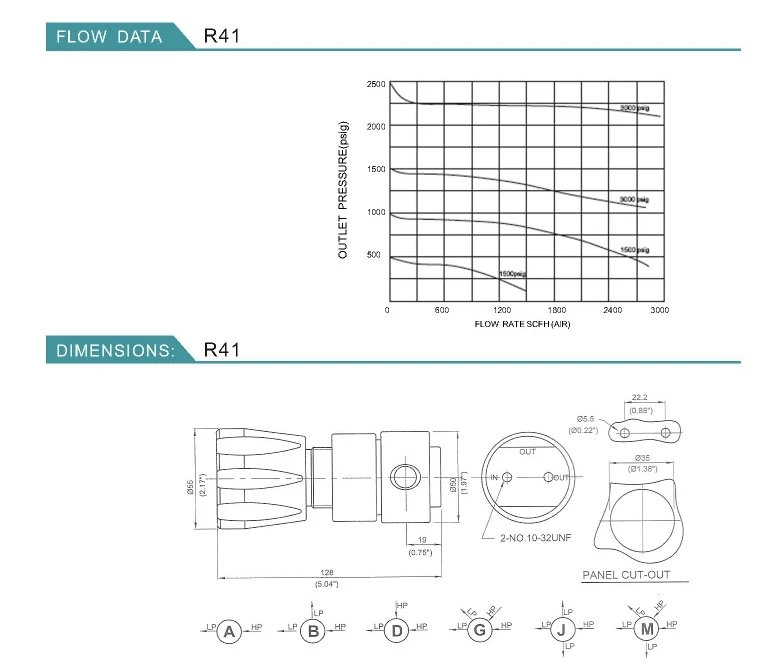

Data Sheet



Detail Image

R41 _.webp.jpg



Packing & Delivery

Packing Details  : 8pcs/carton

Delivery Details : 5-7days
