AFK 1/4NPT female Body thread Adjustable Oxygen Nitrogen Argon Regulator 6000 Psi High Pressure

FOB Reference Price:Get Latest Price
$180.00 - $182.00 / Set | 1 Set/Sets (Min. Order)
Material:
SS 316
Lead Time:
Quantity(Sets) 1 - 200 >200
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
AFK
Model Number:
R41
Body material:
brass, nickel plated brass, stainless steel 316L
Structure:
Diaphragm
Applicable media:
gas: oxygen, nitrogen, hydrogen, helium, CO2 etc..

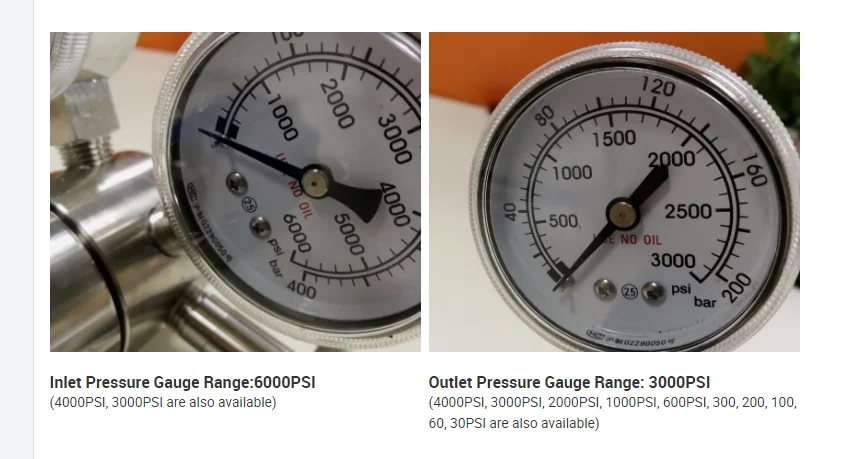

Maximum inlet pressure:
6000psi, 3000psi. Other pressure gauge ranges can be set.
Outlet pressure range:
0~250, 0~500psi, 0~1500psi, 0~3000psi
Inlet connection:
1/4"NPTF, 1/4"NPTM, 1/4"ferrule, G5/8, CGA320, CGA540, CGA580
Outlet connection:
1/4"NPTF, 1/4"NPTM, 1/4"ferrule,6mm ferrule,8mm ferrule, barb
Temperature:
-10~+74°C (-40~+165°F)
Cv:
0.06
Optional:
Panel mounting, relief valve, needle valve
Supply Ability
Supply Ability:
2000 Set/Sets per Week
Packaging & Delivery
Packaging Details
In carton. It is upon your request.
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 200 >200
Est. Time(days) 15 To be negotiated



Product Application

R41 Series stainless steel pressure reducers, piston pressure-reducing construction, stable output pressure,

mainly applied in high input pressure high pure gas, standard gas, corrosive gas and so on.

Design Feature:

Piston type pressure relief structure.

Body NPT:1/4''NPT(F)

Can set filters

Can use a panel or wall mounting



Item NO.

Body

Ports

Inlet pressure

outlet pressure

gauge

inlet connection

Outlet connection

Options

R41

L:316L

A

D:6000psi

D:0-3000psi

G:Mpa

00:1/4"NPT F

00:1/4"NPT F

P:Panel



B:brass

B

B:3000psi

E:0-1500psi

P:psi/bar

01:1/4NPT M

01:1/4NPT M







D



F:0-500psi

W:none

10:1/8O.D.

10:1/8O.D.







G



G:0-250psi



11:1/4O.D.

11:1/4O.D.







J







12:3/8O.D.

12:3/8O.D.







M







15:6mm O.D.

15:6mm O.D.















16:8mm O.D.

16:8mm O.D.



Other fittings are available, pls specify

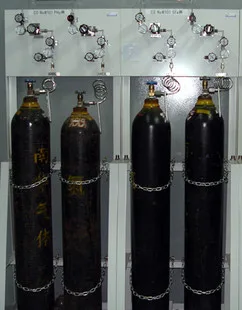

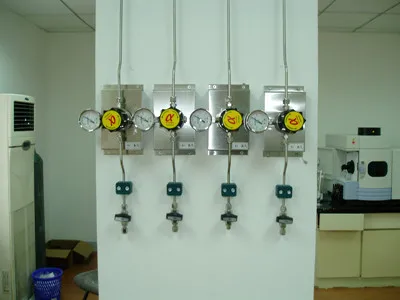

Application

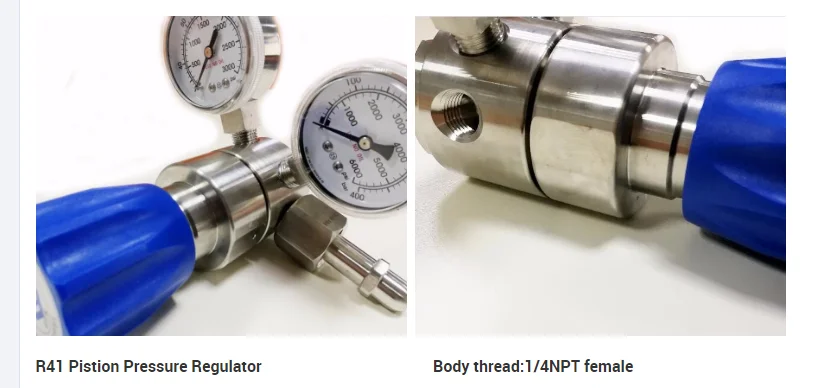

Detail Image

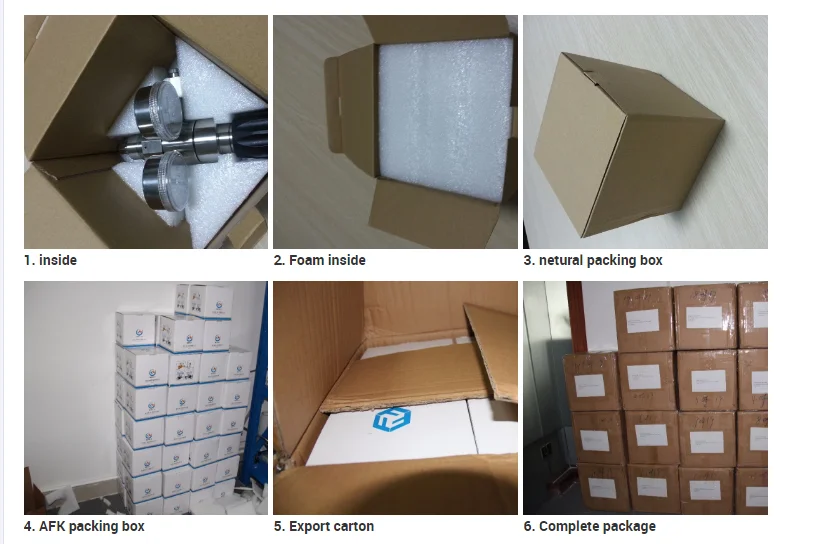

Packing & Delivery

Packing Details  : 8pcs/carton

Delivery Details : 5-7days




The following information should be included in your inquiry:

1. Inlet actual working pressure

2. Outlet actual working pressure

3. Inlet conenction and size

4. Outlet conenction and size

5. Material: brass or stainless steel

6. If you have special flow rate requirements, please indicate it.

7. Quantity
