Stainless Steel High Quality AFK Brand CE Rosh high purity gas nitrogen pressure regulator

FOB Reference Price:Get Latest Price
$180.00 - $182.00 / Set | 1 Set/Sets (Min. Order)
Material:
SS 316
Lead Time:
Quantity(Sets) 1 - 200 >200
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
AFK
Model Number:
R41
Body material:
brass, nickel plated brass, stainless steel 316L
Structure:
Diaphragm
Applicable media:
gas: oxygen, nitrogen, hydrogen, helium, CO2 etc..
Maximum inlet pressure:
6000psi, 3000psi. Other pressure gauge ranges can be set.
Outlet pressure range:
0~250, 0~500psi, 0~1500psi, 0~3000psi
Inlet connection:
1/4"NPTF, 1/4"NPTM, 1/4"ferrule, G5/8, CGA320, CGA540, CGA580
Outlet connection:
1/4"NPTF, 1/4"NPTM, 1/4"ferrule,6mm ferrule,8mm ferrule, barb
Temperature:
-10~+74°C (-40~+165°F)
Cv:
0.06
Optional:
Panel mounting, relief valve, needle valve
Supply Ability
Supply Ability:
2000 Set/Sets per Week
Packaging & Delivery
Packaging Details
In carton. It is upon your request.
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 200 >200
Est. Time(days) 15 To be negotiated

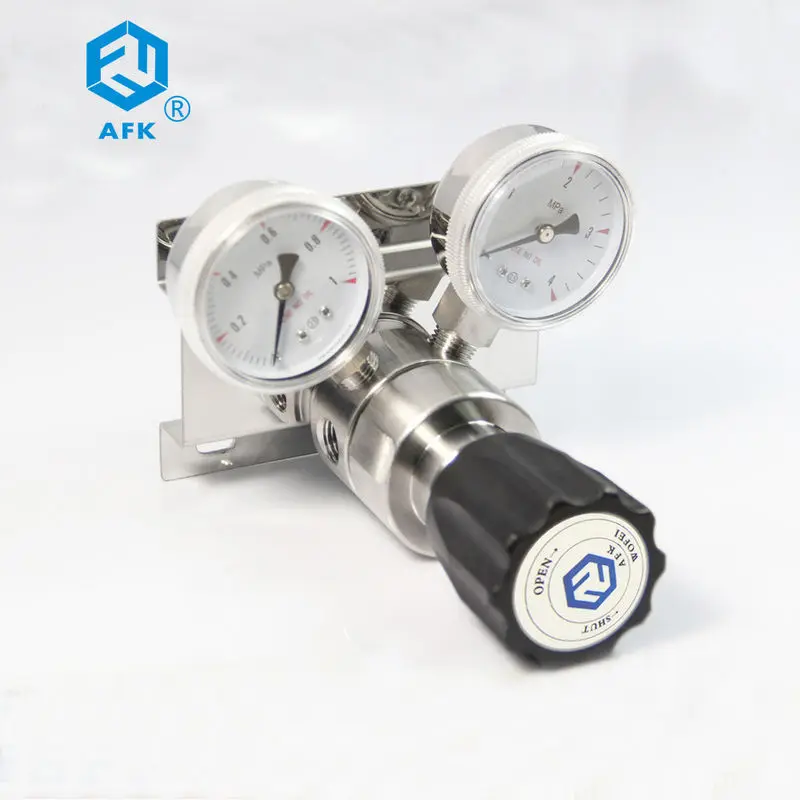

Stainless Steel High Quality AFK Brand  CE Rosh  high purity gas nitrogen pressure regulator

Design Feature:

Piston type pressure relief structure.

Body NPT:1/4''NPT(F)

Can set filters

Can use a panel or wall mounting



Typical Applications:

Labotary

Gas Chromatography

Gas laser

Gas bus-bar

petro-chemical industry

Test equipment



Technical Parameter:

Maximum Inlet Pressure                       3000,6000psig
Outlet Pressure Ranges  0~250, 0~500, 0~1500,0~3000psig
Safety test pressure1.5 times maximum inlet pressure

Operating Temperature

-40°F to +165°F / -40°c to 74°c

Leak ratefoam test
Cv value0.06



Material:



 Body                              316L.Brass
Bonnet316L. Brass
Diafragm316L
Strainer316L(10 μm)
SeatPCTFE
Spring316L
Plunger valve core316L
 o-ring

 viton

































Application

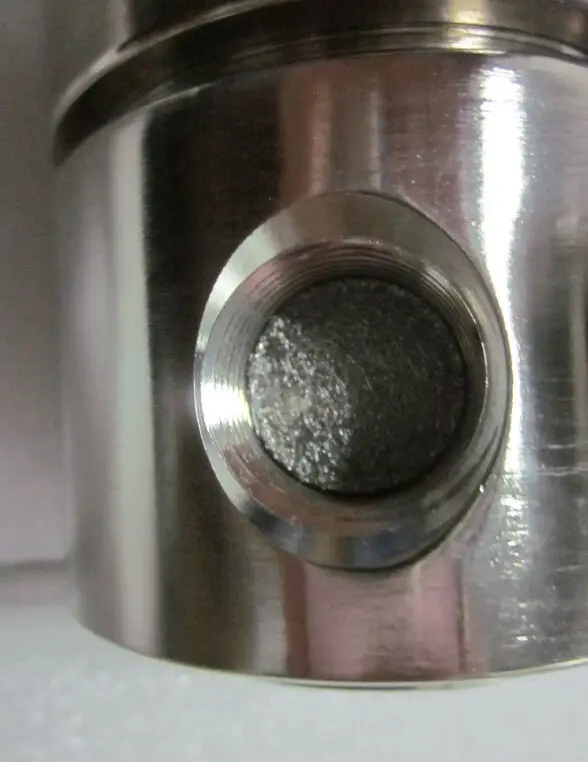

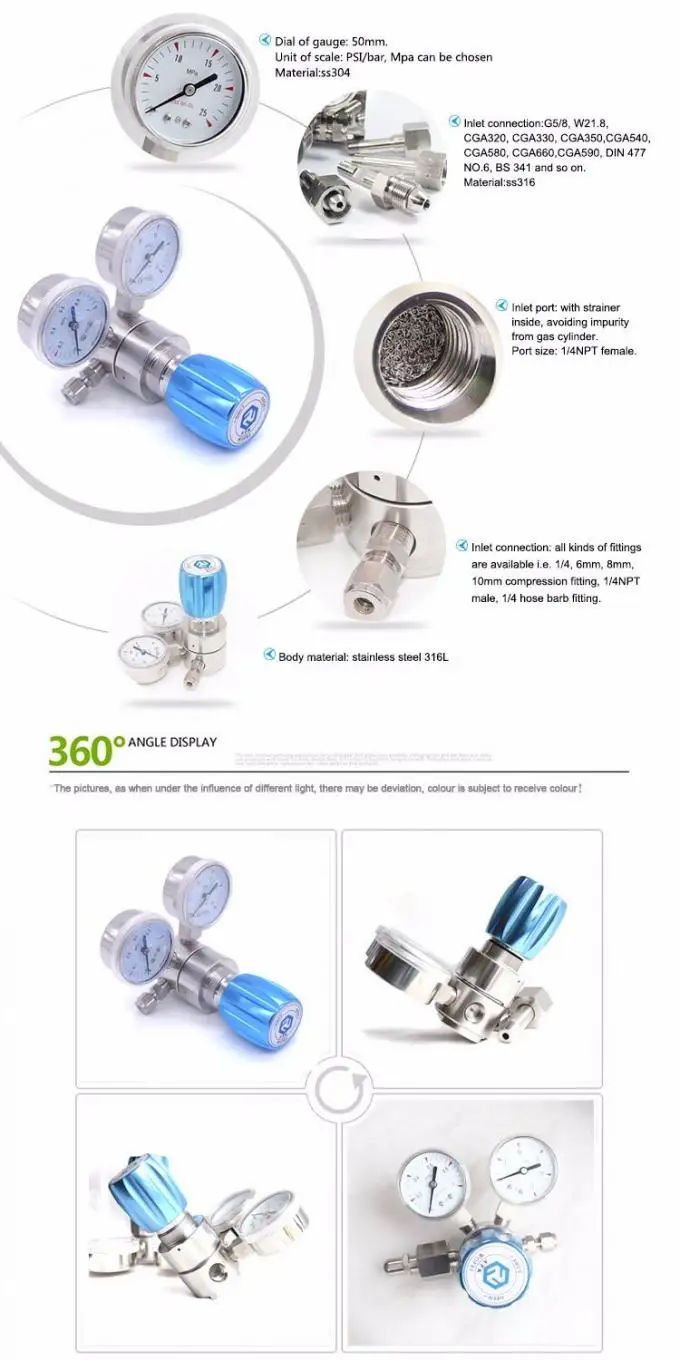

Detail Image








The following information should be included in your inquiry:

1. Inlet actual working pressure

2. Outlet actual working pressure

3. Inlet conenction and size

4. Outlet conenction and size

5. Material: brass or stainless steel

6. If you have special flow rate requirements, please indicate it.

7. Quantity
